Crack width is a complex and tough topic. Most people still use 20 years old method defined in ACI 318-95. The situation becomes more complex if axial tension force and moment is combined to calculate crack width. One of the examples is large water tanks above ground. This tutorial aims at explaining details and methods in different ACI documents. View RCC14BSI-ACI-350 Crack Width-01.xls from CIVIL ENGI CE304 at National University of Sciences & Technology, Islamabad. Crack Width Calculations Based on. Likely to crack by comparing calculated stresses with the expected concrete strength. The 95 percentile, f 5, should be used to obtain conservative values for restraint forces that might occur before the concrete cracks. These restraint forces are used to calculate the amount of reinforcement needed for crack width control. Causes of Cracking. The originator does not guarantee the accuracy of the output or any other information on this spreadsheet. The users take all responsiblity for the use of this spreadsheet, modifications and output. Should you experience any problems or like to see more features added to this spreadsheet please contact: Disclaimer Crack width d 47.40 164.60 30. (permissible crack width) Layer Bar Dia. Spacing Thickness Width @ X Operating Instructions Reinforcement Details Red messages indicate failure Enter the Data in Blue Cells (underlined) Only x (EARLY THERMAL CRACKING oc CALCULATIONS DOCUMENT No.(Project / Doc) SHEET No. SUBJECT REF OUTPUT DATE: PREPARED BY: ( B Use B eth Cement Content Kg/m3.

Eurocode 2 part 1-1: Design of concrete structures 7.3 Crack control

The crack width, w_k, may be calculated as follows:

wk = sr,max⋅(εsm - εcm)

(7.8)

where:

s_r,max

is the maximum crack spacing

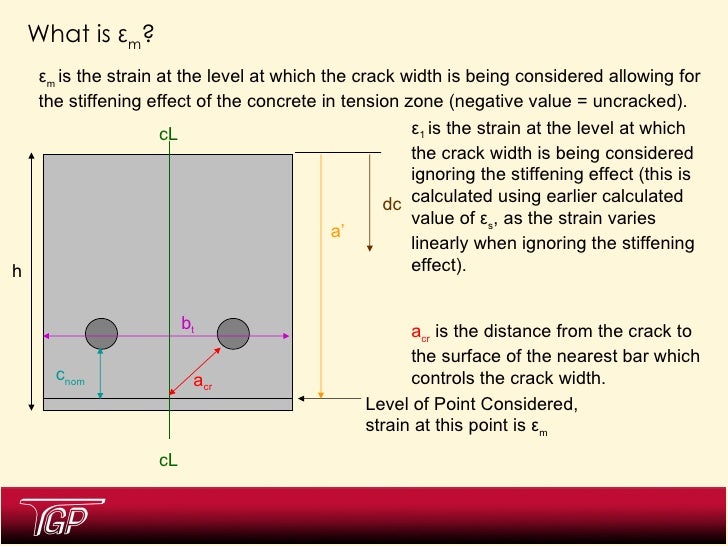

ε_sm

is the mean strain in the reinforcement under the relevant combination of loads, including the effect of imposed deformations and taking into account the effects of tension stiffening

ε_cm

is the mean strain in the concrete between cracks.

(7.9)

where:

σ_s

is the stress in the tension reinforcement assuming a cracked section,
see application for a rectangular section or application for a T-section

E_s

is the design value of the modulus of elasticity of the reinforcing steel, see § 3.2.7 (4)

α_e

is the ratio E_s/E_cm

with

E_cm

the secant modulus of elasticity of concrete

f_ct,eff

is the mean value of the tensile strength of the concrete effective at the time when the cracks may first be expected to occur:
f_ct,eff = f_ctm or lower, (f_ctm(t)), if cracking is expected earlier than 28 days

ρ_p,eff

= (As + ξ1⋅A'p)/Ac,eff

(7.10)

with

A_s

the cross sectional area of reinforcement

A'_p

the area of pre or post-tensioned tendons within A_c,eff

A_c,eff

the effective area of concrete in tension surrounding the reinforcement or prestressing tendons of depth, h_c,ef, where h_c,ef is the lesser of 2,5(h - d), (h - x)/3 or h/2 (see Figure 7.1)

ξ₁

the adjusted ratio of bond strength taking into account the different diameters of prestressing and reinforcing steel:

ξ1 =

(7.5)

with

ξ

the ratio of bond strength of prestressing and reinforcing steel, according to Table 6.2

Φ_S

the largest bar diameter of the reinforcing steel

Φ_P

the diameter or equivalent diameter of prestressing steel:
Φ_p = 1,6⋅√A_P for bundles, where A_P is the area of a prestressing steel,
Φ_p = 1,75⋅Φ_wire for single 7 wire strands,
Φ_p = 1,20⋅Φ_wire for single 3 wire strands, where Φ_wire is the wire diameter.

k_t

is a factor dependent on the duration of the load:
k_t = 0,6 for short term loading,
k_t = 0,4 for long term loading.

• Where the bonded reinforcenlent is fixed at reasonably close centres within the tension zone (spacing ≤ 5(c + Φ/2), cf. Figure 7.2), the maximum crack spacing s_r,max may be calculated as follows:

sr,max = k3c + k1k2k4Φ / ρp,eff

(7.11)

where:

Φ

is the bar diameter. Where a mixture of bar diameters is used in a section, an equivalent diameter, Φ_eq, should be used.

c

is the cover to the longitudinal reinforcement

ρ_p,eff

see the difference of the mean strains above

k₁

is a coefficient which takes account of the bond properties of the bonded reinforcement:
k₁ = 0,8 for high bond bars,
k₁ = 1,6 for bars with an effectively plain surface (e.g. prestressing tendons).

k₂

is a coefficient which takes account of the distribution of strain:
k₂ = 0,5 for bending,
k₂ = 1,0 for pure tension.
Intermediate values of k₂ should be used for cases of eccentric tension or for local areas:

k2 = (ε1 + ε2)/(2ε1)

(7.13)

where ε₁ is the greater and ε₂ is the lesser tensile strain at the boundaries of the section considered, assessed on the basis of a cracked section.

k₃

is a Nationally Determined Parameter, see § 7.3.4 (3)

k₄

is a Nationally Determined Parameter, see § 7.3.4 (3).

• Where the spacing of the bonded reinforcement exceeds 5(c + Φ/2) (cf. Figure 7.2), or where there is no bonded reinforcement within the tension zone, the maximum crack spacing s_r,max may be calculated as follows:

sr,max = 1,3(h - x)

(7.14)

where:

h

is the overall depth of the section (see Figure 7.1)

x

is the neutral axis depth of the section (see Figure 7.1).

This application calculates the crack width w_k from your inputs. Intermediate results will also be given.

First, change the following option if necessary:
